Four more HDMI inputs, so now you can switch between eight different camera/video sources at the same time.What the ATEM Mini Extreme adds over the ATEM Mini Pro: Designed for live streaming or webcam, the Mini Extreme ISO has HDMI outputs to feed monitors and supports up to 16-screen multiview.ġ080p: 23.98/24/25/29.97/30/50/59.94/60 fpsĢ x 1/8" / 3.5 mm TRS Stereo Analog Femaleġ x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Femaleġ4.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cmġ4.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.The Blackmagic Design ATEM Mini Extreme and Extreme ISO basically take all the features of the Pro and Pro ISO and double down on their features, while adding a few more quality of life improvements so that true professional streamers have all the tools necessary to break open their production into new heights.
The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. Switch, add effects, color grade, and key in real time using the control surface's buttons, or via the software control panel. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. It features an integrated control panel and has advanced broadcast features.

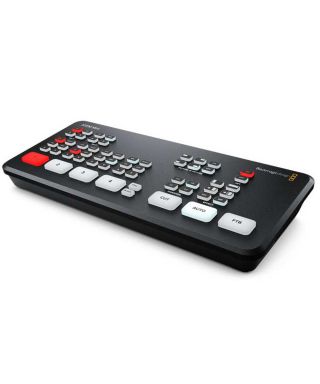

The Blackmagic Design ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming.
